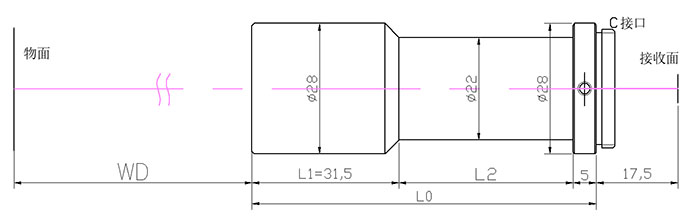

	遠心鏡頭     準遠心同鏡頭 準遠心按頭部外徑分為32mm,28mm,26mm,22mm,20mm,18mm,16mm等, 準遠心鏡頭不提供同軸光的規格。 高清準遠心32 高清準遠心28 高清準遠心26 高清準遠心22 高清遠心18 敬請期待  敬請期待  敬請期待  高清準遠心鏡頭，外徑28，視場最大36，適用相機1/4'至1' 1.鏡頭相比普通準遠心有更大的相對孔徑和分辨率，支持更大的芯片相機，最大可以支持到1寸芯片 2.鏡頭頭部外徑28，后部外徑為22.準遠心設計,C標準接口,適用相機芯片尺寸:1',2/3',1/1.8',1/2',1/3',1/4',1/6'，參照常用相機芯片尺寸對照表,芯片對角線對應鏡頭規格表中像面直徑，只要芯片對角數據小于像面直徑的都可以用。 產品列表說明： 產品按放大率從小到大排列，相同放大率按工作距從小到大排列。 外形圖在最后一列，圖中WD表示工作距。型號中JZ表示焦中高清系列，接著是放大率，X后面是工作距， TN表示準遠心，準遠心沒有對應的同軸光型號鏡頭， 最后面加數字表示頭部外徑或安裝外徑。最右邊是圖紙鏈接。 鏡頭中所列數值孔徑是鏡頭最佳的孔徑，和對應F數以及景深，分辨率?？梢园从脩粢蠖ㄖ破渌臄抵悼讖胶蛯木吧睢Ｒ坏抵悼讖蕉?，就會有對應的分辨率和景深。      型號 倍數 工作距 數值孔徑 分辨率 景深 孔徑F# 畸變% 遠心度° 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載 JZ0.3X90TN28 0.30 90 0.02 0.015 5.987 6.7 2.70 5.78 47.8 31.5 11.3 28 22 C 11 JZ0.3X90TN28 JZ0.3X112TN28 0.30 112 0.02 0.018 7.110 8.0 2.29 5.72 47.8 31.5 11.3 28 22 C 11 JZ0.3X112TN28 JZ0.3X350TN 0.30 350 0.01 0.029 11.609 13.1 0.55 1.79 65.0 31.5 28.5 28 22 C 8 JZ0.3X350TN28 JZ0.4X67TN28 0.40 67 0.04 0.008 2.369 4.7 1.67 5.48 53.7 31.5 17.2 28 22 C 11 JZ0.4X67TN28 JZ0.4X87TN28 0.40 87 0.02 0.015 4.407 8.8 1.62 4.44 53.7 31.5 17.2 28 22 C 11 JZ0.4X87TN28 JZ0.4X169TN28 0.40 169 0.02 0.019 5.672 11.3 1.01 2.59 61.5 31.5 25.0 28 22 C 11 JZ0.4X169TN28 JZ0.4X250TN 0.40 250 0.01 0.022 6.675 13.4 0.54 1.73 65.0 31.5 28.5 28 22 C 8 JZ0.4X250TN28 JZ0.4X300TN 0.40 300 0.01 0.026 7.690 15.4 0.41 1.54 71.5 31.5 35.0 28 22 C 8 JZ0.4X300TN28 JZ0.4X306TN 0.40 306 0.01 0.026 7.821 15.6 0.73 1.49 61.5 31.5 25.0 28 22 C 8 JZ0.4X306TN28 JZ0.5X50TN28 0.50 50 0.04 0.009 2.040 6.4 0.77 1.84 65.0 31.5 28.5 28 22 C 11 JZ0.5X50TN28 JZ0.5X51TN28 0.50 51 0.05 0.007 1.631 5.1 0.78 1.80 65.0 31.5 28.5 28 22 C 11 JZ0.5X51TN28 JZ0.5X72TN28 0.50 72 0.03 0.010 2.303 7.2 1.06 2.97 61.5 31.5 25.0 28 22 C 11 JZ0.5X72TN28 JZ0.5X91TN28 0.50 91 0.04 0.008 1.896 5.9 1.11 3.16 61.5 31.5 25.0 28 22 C 11 JZ0.5X91TN28 JZ0.5X150TN28 0.50 150 0.02 0.014 3.249 10.2 0.80 2.42 65.0 31.5 28.5 28 22 C 11 JZ0.5X150TN28 JZ0.5X233TN 0.50 233 0.02 0.021 5.056 15.8 0.77 2.02 71.5 31.5 35.0 28 22 C 11 JZ0.5X233TN28 JZ0.5X245TN 0.50 245 0.02 0.022 5.258 16.4 0.70 1.95 74.0 31.5 37.5 28 22 C 11 JZ0.5X245TN28 JZ0.5X285TN28 0.50 285 0.02 0.021 4.947 15.5 0.68 1.90 74.0 31.5 37.5 28 22 C 11 JZ0.5X285TN28 JZ0.5X334TN 0.50 334 0.01 0.022 5.361 16.8 0.80 1.52 71.5 31.5 35.0 28 22 C 11 JZ0.5X334TN28 JZ0.6X36TN28 0.60 36 0.05 0.007 1.335 6.0 0.52 1.13 71.5 31.5 35.0 28 22 C 11 JZ0.6X36TN28 JZ0.6X57TN28 0.60 57 0.04 0.009 1.824 8.2 0.82 3.49 61.5 31.5 25.0 28 22 C 11 JZ0.6X57TN28 JZ0.6X77TN28 0.60 77 0.05 0.007 1.357 6.1 1.73 4.32 65.0 31.5 28.5 28 22 C 16 JZ0.6X77TN28 JZ0.6X127TN28 0.60 127 0.03 0.010 2.063 9.3 0.54 2.23 71.5 31.5 35.0 28 22 C 11 JZ0.6X127TN28 JZ0.6X263TN28 0.60 263 0.02 0.019 3.776 17.0 0.38 1.69 91.0 31.5 54.5 28 22 C 11 JZ0.6X263TN28 JZ0.7X48TN28 0.70 48 0.04 0.009 1.490 9.1 0.72 5.17 53.7 31.5 17.2 28 22 C 11 JZ0.7X48TN28 JZ0.7X64TN 0.70 64 0.04 0.008 1.389 8.5 0.63 4.04 61.5 31.5 25.0 28 22 C 11 JZ0.7X64TN28 JZ0.7X66TN28 0.70 66 0.05 0.007 1.233 7.6 1.36 4.97 65.0 31.5 28.5 28 22 C 16 JZ0.7X66TN28 JZ0.75X111TN28 0.75 111 0.03 0.010 1.643 11.5 0.36 2.20 79.0 31.5 42.5 28 22 C 11 JZ0.8X111TN28 JZ0.8X41TN28 0.80 41 0.04 0.008 1.245 10.0 0.37 0.64 83.5 31.5 47.0 28 22 C 11 JZ0.8X41TN28 JZ0.8X43TN28 0.80 43 0.04 0.008 1.218 9.7 1.21 7.64 53.7 31.5 17.2 28 22 C 16 JZ0.8X43TN28 JZ0.8X58TN28 0.80 58 0.05 0.007 1.038 8.3 1.10 5.43 65.0 31.5 28.5 28 22 C 16 JZ0.8X58TN28 JZ0.8X64TN 0.80 64 0.05 0.007 1.030 8.2 0.41 0.56 83.5 31.5 47.0 28 22 C 11 JZ0.8X64TN28 JZ0.8X110TN28 0.80 110 0.03 0.010 1.530 12.2 0.35 2.17 79.7 31.5 43.2 28 22 C 11 JZ0.8X110TN28 JZ0.8X177TN28 0.80 177 0.03 0.010 1.561 12.5 1.34 2.00 83.5 31.5 47.0 28 22 C 16 JZ0.8X177TN28 JZ0.8X189TN28 0.80 189 0.03 0.012 1.749 14.0 0.82 1.14 79.0 31.5 42.5 28 22 C 11 JZ0.8X189TN28 型號 倍數 工作距 數值孔徑 分辨率 景深 孔徑F# 畸變% 遠心度° 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載 JZ0.8X211TN28 0.80 211 0.02 0.015 2.173 17.4 0.78 2.10 96.0 31.5 59.5 28 22 C 16 JZ0.8X211TN28 JZ0.83X151TN28 0.83 151 0.03 0.010 1.402 12.1 1.38 1.19 71.5 31.5 35.0 28 22 C 11 JZ0.83X151TN28 JZ0.9X39TN28 0.90 39 0.04 0.008 1.028 10.4 1.02 6.97 57.5 31.5 21.0 28 22 C 16 JZ0.9X39TN28 JZ0.9X53TN28 0.90 53 0.06 0.006 0.799 8.1 0.90 4.51 71.5 31.5 35.0 28 22 C 16 JZ0.9X53TN28 JZ0.92X141TN28 0.92 141 0.04 0.009 1.133 12.0 1.30 1.27 74.0 31.5 37.5 28 22 C 11 JZ0.92X141TN28 JZ1X30TN28 1.00 30 0.05 0.006 0.772 9.7 0.23 0.77 91.0 31.5 54.5 28 22 C 11 JZ1X30TN28 JZ1X36TN28 1.00 36 0.05 0.007 0.877 11.0 0.87 7.15 57.5 31.5 21.0 28 22 C 16 JZ1X36TN28 JZ1X49TN 1.00 49 0.05 0.007 0.840 10.5 0.36 3.36 71.5 31.5 35.0 28 22 C 11 JZ1X49TN28 JZ1X50TN28 1.00 50 0.06 0.006 0.679 8.5 0.57 1.90 87.5 31.5 51.0 28 22 C 16 JZ1X50TN28 JZ1X95TN28 1.00 95 0.03 0.010 1.150 14.4 0.23 1.91 91.0 31.5 54.5 28 22 C 11 JZ1X95TN28 JZ1X162TN28 1.00 162 0.04 0.009 1.129 14.1 0.75 0.76 83.5 31.5 47.0 28 22 C 11 JZ1X162TN28 JZ1X170TN28 1.00 170 0.03 0.011 1.273 15.9 0.41 1.18 96.0 31.5 59.5 28 22 C 11 JZ1X170TN28 JZ1.08X164TN28 1.08 164 0.03 0.010 1.083 15.8 0.86 0.74 79.0 31.5 42.5 28 22 C 11 JZ1.08X164TN28 JZ1.2X43TN28 1.20 43 0.06 0.006 0.548 9.9 0.39 1.71 96.0 31.5 59.5 28 22 C 16 JZ1.2X43TN28 JZ1.2X87TN28 1.20 87 0.04 0.009 0.852 15.3 0.14 2.19 100.0 31.5 63.5 28 22 C 11 JZ1.2X87TN28 JZ1.2X141TN28 1.20 141 0.04 0.008 0.784 14.1 0.45 0.79 96.0 31.5 59.5 28 22 C 11 JZ1.2X141TN28 JZ1.33X150TN28 1.33 150 0.04 0.009 0.782 17.3 1.02 1.15 96.0 31.5 59.5 28 22 C 16 JZ1.33X150TN28 JZ1.5X35TN 1.50 35 0.05 0.006 0.516 14.5 0.11 0.70 113.5 31.5 77.0 28 22 C 11 JZ1.5X35TN28 JZ1.5X77TN28 1.50 77 0.04 0.008 0.628 17.7 0.10 1.85 117.0 31.5 80.5 28 22 C 11 JZ1.5X77TN28 JZ1.6X160TN28 1.60 160 0.04 0.009 0.640 20.5 0.91 0.79 96.0 31.5 59.5 28 22 C 16 JZ1.6X160TN28 型號 倍數 工作距 數值孔徑 分辨率 景深 孔徑F# 畸變% 遠心度° 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載
