遠心鏡頭 準遠心同鏡頭
遠心按頭部外徑分為50mm,32mm,28mm,26mm,22mm,20mm,18mm,16mm等,
32mm以下的大部份遠心鏡頭可以同時提供同軸光與非同軸規格。 |
| 高清遠心32 |
高清遠心28 |
高清遠心30 |
高清遠心26 |
高清遠心22 |
 |
 |
敬請期待 |
敬請期待 |
敬請期待 |
|
 高清遠心鏡頭，外徑28，視場最大19，適用相機1/4'至1.1'
1.鏡頭相比普通遠心有更大的相對孔徑和分辨率，支持更大的芯片相機，最大可以支持到1寸芯片
2.物方遠心設計,C標準接口,適用相機芯片尺寸:1',2/3',1/1.8',1/2',1/3',1/4',1/6'，參照常用相機芯片尺寸對照表,芯片對角線對應鏡頭規格表中像面直徑，只要芯片對角數據小于像面直徑的都可以用。
3.同軸光照明,附送遠心專用LED同軸照明燈源（不含3V50A電源)，通用8mm,10mm,14mm的光源接口;
4.可以按用戶要求定制其它倍率及工作距的鏡頭。
產品列表說明：
產品按放大率從小到大排列，相同放大率按工作距從小到大排列。

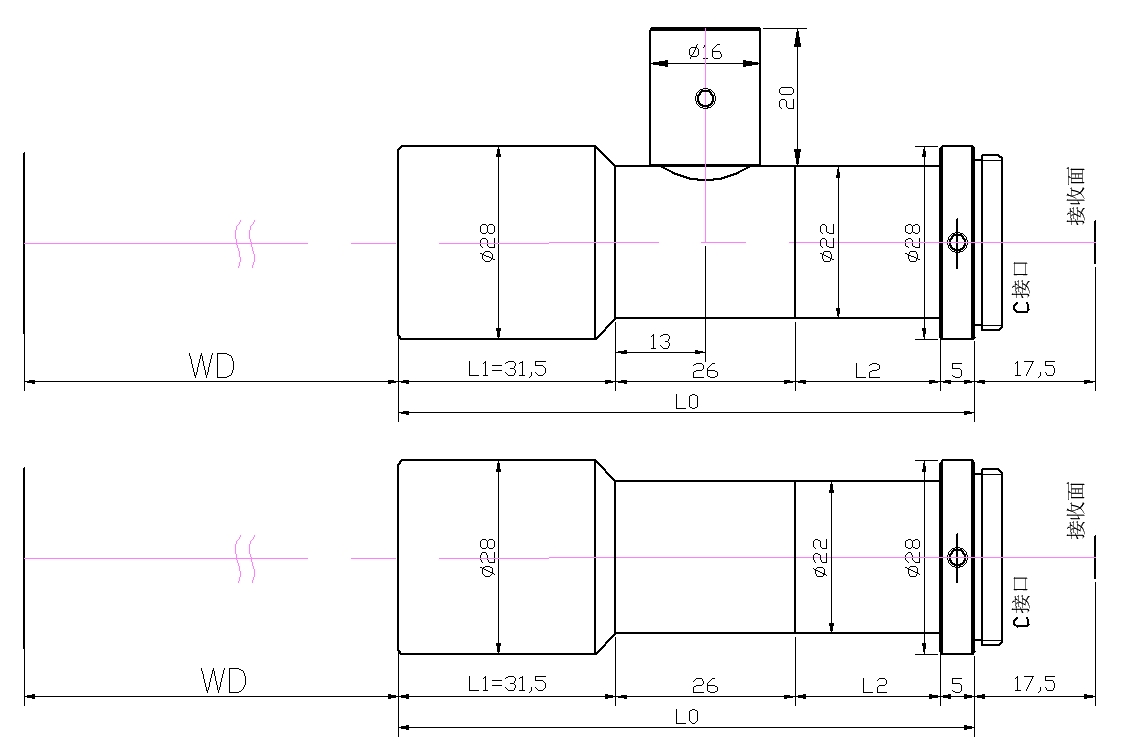

外形圖在最后一列，圖中WD表示工作距。型號中JZ表示焦中高清系列，接著是放大率，X后面是工作距，
T表示遠心，C表示同軸照明，型號中不帶C的表示沒有相同的同軸光型號，帶C的一般有等同的非同軸光型號
最后面加數字表示頭部外徑或安裝外徑。最右邊是圖紙鏈接。
鏡頭中所列數值孔徑是鏡頭最佳的孔徑，和對應F數以及景深，分辨率。可以按用戶要求定制其它的數值孔徑和對應的景深。一旦數值孔徑定了，就會有對應的分辨率和景深。
|
| 型號 |
倍數 |
工作距 |
數值孔徑 |
分辨率 |
景深 |
孔徑F# |
畸變% |
遠心度 |
鏡身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
像面直徑 |
外形圖下載 |
JZ0.4X85TC28 |
0.40 |
85 |
0.04 |
0.008 |
2.517 |
5.0 |
0.56 |
0.10 |
67.7 |
31.5 |
5.4 |
28 |
22 |
C |
7 |
JZ0.4X85T28 |
JZ0.5X55TC28 |
0.50 |
55 |
0.05 |
0.007 |
1.605 |
5.0 |
0.60 |
0.10 |
73.8 |
31.5 |
11.3 |
28 |
22 |
C |
9 |
JZ0.5X55T28 |
JZ0.5X80TC28 |
0.50 |
80 |
0.05 |
0.007 |
1.606 |
5.0 |
0.54 |
0.10 |
74.0 |
31.5 |
11.3 |
28 |
22 |
C |
9 |
JZ0.5X80T28 |
JZ0.6X35TC28 |
0.60 |
35 |
0.05 |
0.007 |
1.334 |
6.0 |
0.45 |
0.10 |
79.5 |
31.5 |
17.2 |
28 |
22 |
C |
9 |
JZ0.6X35T28 |
JZ0.6X62TC28 |
0.60 |
62 |
0.05 |
0.007 |
1.335 |
6.0 |
0.42 |
0.10 |
80.0 |
31.5 |
17.2 |
28 |
22 |
C |
9 |
JZ0.6X62T28 |
JZ0.6X88TC28 |
0.60 |
88 |
0.05 |
0.007 |
1.339 |
6.0 |
0.78 |
0.10 |
74.0 |
31.5 |
11.3 |
28 |
22 |
C |
11 |
JZ0.6X88T28 |
JZ0.7X74TC28 |
0.70 |
74 |
0.05 |
0.007 |
1.145 |
7.0 |
0.56 |
0.10 |
79.6 |
31.5 |
17.2 |
28 |
22 |
C |
11 |
JZ0.7X74T28 |
JZ0.8X40TC28 |
0.80 |
40 |
0.06 |
0.006 |
0.832 |
6.7 |
0.40 |
0.10 |
90.7 |
31.5 |
28.5 |
28 |
22 |
C |
11 |
JZ0.8X40T28 |
JZ0.8X45TC28 |
0.80 |
45 |
0.06 |
0.006 |
0.832 |
6.7 |
0.46 |
0.10 |
88.0 |
31.5 |
25.0 |
28 |
22 |
C |
11 |
JZ0.8X45T28 |
JZ0.8X66TC28 |
0.80 |
66 |
0.06 |
0.006 |
0.833 |
6.7 |
0.42 |
0.10 |
87.5 |
31.5 |
25.0 |
28 |
22 |
C |
11 |
JZ0.8X66T28 |
JZ0.8X110TC28 |
0.80 |
110 |
0.05 |
0.007 |
1.003 |
8.0 |
0.30 |
0.10 |
79.2 |
31.5 |
17.2 |
28 |
22 |
C |
11 |
JZ0.8X110T28 |
JZ0.9X31TC28 |
0.90 |
31 |
0.06 |
0.006 |
0.739 |
7.5 |
0.33 |
0.10 |
97.5 |
31.5 |
35.0 |
28 |
22 |
C |
11 |
JZ0.9X31T28 |
JZ0.9X61TC28 |
0.90 |
61 |
0.06 |
0.006 |
0.740 |
7.5 |
0.36 |
0.10 |
90.9 |
31.5 |
28.5 |
28 |
22 |
C |
11 |
JZ0.9X61T28 |
JZ0.9X99TC28 |
0.90 |
99 |
0.05 |
0.007 |
0.889 |
9.0 |
0.20 |
0.10 |
87.0 |
31.5 |
25.0 |
28 |
22 |
C |
10 |
JZ0.9X99T28 |
JZ1X23TC28 |
1.00 |
23 |
0.06 |
0.006 |
0.665 |
8.3 |
0.53 |
0.10 |
105.1 |
31.5 |
42.5 |
28 |
22 |
C |
16 |
JZ1X23T28 |
JZ1X51TC28 |
1.00 |
51 |
0.06 |
0.006 |
0.665 |
8.3 |
0.50 |
0.10 |
97.7 |
31.5 |
35.0 |
28 |
22 |
C |
15 |
JZ1X51T28 |
JZ1X95TC28 |
1.00 |
95 |
0.05 |
0.007 |
0.800 |
10.0 |
0.21 |
0.10 |
90.7 |
31.5 |
28.5 |
28 |
22 |
C |
11 |
JZ1X95T28 |
JZ1.1X89TC28 |
1.10 |
89 |
0.05 |
0.007 |
0.726 |
11.0 |
0.27 |
0.10 |
97.4 |
31.5 |
35.0 |
28 |
22 |
C |
14 |
JZ1.1X89T28 |
JZ1.2X42TC28 |
1.20 |
42 |
0.06 |
0.006 |
0.554 |
10.0 |
0.40 |
0.10 |
109.5 |
31.5 |
47.0 |
28 |
22 |
C |
16 |
JZ1.2X42T28 |
JZ1.2X87TC28 |
1.20 |
87 |
0.05 |
0.007 |
0.665 |
12.0 |
0.30 |
0.10 |
100.0 |
31.5 |
37.5 |
28 |
22 |
C |
15 |
JZ1.2X87T28 |
JZ1.3X39TC28 |
1.30 |
39 |
0.06 |
0.006 |
0.510 |
10.8 |
0.34 |
0.10 |
109.5 |
31.5 |
47.0 |
28 |
22 |
C |
16 |
JZ1.3X39T28 |
JZ1.3X84TC28 |
1.30 |
84 |
0.05 |
0.007 |
0.613 |
13.0 |
0.29 |
0.10 |
104.6 |
31.5 |
42.5 |
28 |
22 |
C |
16 |
JZ1.3X84T28 |
JZ1.3X112TC28 |
1.30 |
112 |
0.05 |
0.007 |
0.609 |
12.9 |
1.15 |
0.10 |
90.8 |
31.5 |
28.5 |
28 |
22 |
C |
16 |
JZ1.3X112T28 |
JZ1.4X35TC28 |
1.40 |
35 |
0.06 |
0.006 |
0.474 |
11.6 |
0.30 |
0.10 |
122.1 |
31.5 |
59.5 |
28 |
22 |
C |
16 |
JZ1.4X35T28 |
JZ1.4X81TC28 |
1.40 |
81 |
0.05 |
0.007 |
0.569 |
13.9 |
0.31 |
0.10 |
109.5 |
31.5 |
47.0 |
28 |
22 |
C |
18 |
JZ1.4X81T28 |
JZ1.4X117TC28 |
1.40 |
117 |
0.05 |
0.007 |
0.565 |
13.8 |
1.59 |
0.10 |
90.7 |
31.5 |
28.5 |
28 |
22 |
C |
16 |
JZ1.4X117T28 |
JZ1.5X79TC28 |
1.50 |
79 |
0.05 |
0.007 |
0.590 |
16.6 |
0.32 |
0.10 |
108.0 |
31.5 |
51.0 |
28 |
22 |
C |
19 |
JZ1.5X79T28 |
JZ1.5X109TC28 |
1.50 |
109 |
0.05 |
0.007 |
0.527 |
14.8 |
0.92 |
0.10 |
97.5 |
31.5 |
35.0 |
28 |
22 |
C |
16 |
JZ1.5X109T28 |
JZ1.6X75TC28 |
1.60 |
75 |
0.05 |
0.007 |
0.554 |
17.7 |
0.27 |
0.10 |
122.4 |
31.5 |
59.5 |
28 |
22 |
C |
19 |
JZ1.6X75T28 |
JZ1.6X126TC28 |
1.60 |
126 |
0.05 |
0.007 |
0.494 |
15.8 |
0.79 |
0.10 |
87.2 |
31.5 |
25.0 |
28 |
22 |
C |
11 |
JZ1.6X126T28 |
JZ1.7X28TC28 |
1.70 |
28 |
0.06 |
0.006 |
0.390 |
14.1 |
0.21 |
0.10 |
138.6 |
31.5 |
76.0 |
28 |
22 |
C |
16 |
JZ1.7X28T28 |
JZ1.7X113TC28 |
1.70 |
113 |
0.05 |
0.007 |
0.463 |
16.7 |
1.28 |
0.10 |
97.5 |
31.5 |
35.0 |
28 |
22 |
C |
16 |
JZ1.7X113T28 |
JZ1.7X124TC28 |
1.70 |
124 |
0.05 |
0.007 |
0.464 |
16.8 |
0.67 |
0.10 |
91.5 |
31.5 |
28.5 |
28 |
22 |
C |
11 |
JZ1.7X124T28 |
JZ2X70TC28 |
2.00 |
70 |
0.05 |
0.007 |
0.397 |
19.8 |
0.19 |
0.10 |
139.4 |
31.5 |
77.0 |
28 |
22 |
C |
19 |
JZ2X70T28 |
JZ2X100TC28 |
2.00 |
100 |
0.05 |
0.006 |
0.378 |
18.9 |
1.68 |
0.10 |
97.5 |
31.5 |
35.0 |
28 |
22 |
C |
16 |
JZ2X100T28 |
JZ2X104TC28 |
2.00 |
104 |
0.05 |
0.007 |
0.392 |
19.6 |
0.58 |
0.10 |
113.5 |
31.5 |
51.0 |
28 |
22 |
C |
16 |
JZ2X104T28 |
JZ2X109TC28 |
2.00 |
109 |
0.05 |
0.007 |
0.391 |
19.5 |
1.02 |
0.10 |
104.9 |
31.5 |
42.5 |
28 |
22 |
C |
16 |
JZ2X109T28 |
JZ2.3X100TC28 |
2.30 |
100 |
0.05 |
0.007 |
0.339 |
22.4 |
0.47 |
0.10 |
122.0 |
31.5 |
59.5 |
28 |
22 |
C |
16 |
JZ2.3X100T28 |
JZ2.4X102TC28 |
2.40 |
102 |
0.05 |
0.006 |
0.321 |
23.1 |
0.86 |
0.10 |
113.4 |
31.5 |
51.0 |
28 |
22 |
C |
16 |
JZ2.4X102T28 |
JZ2.5X88TC28 |
2.50 |
88 |
0.05 |
0.006 |
0.308 |
24.1 |
0.55 |
0.10 |
122.3 |
31.5 |
59.5 |
28 |
22 |
C |
16 |
JZ2.5X88T28 |
JZ2.9X86TC28 |
2.90 |
86 |
0.05 |
0.006 |
0.260 |
27.3 |
-0.01 |
0.10 |
122.5 |
31.5 |
59.5 |
28 |
22 |
C |
16 |
JZ2.9X86T28 |
|
|
